We provide systems consultations, design and drawings free of charge to our wholesaler and contractor partners. Contact us to get started on your custom project today!

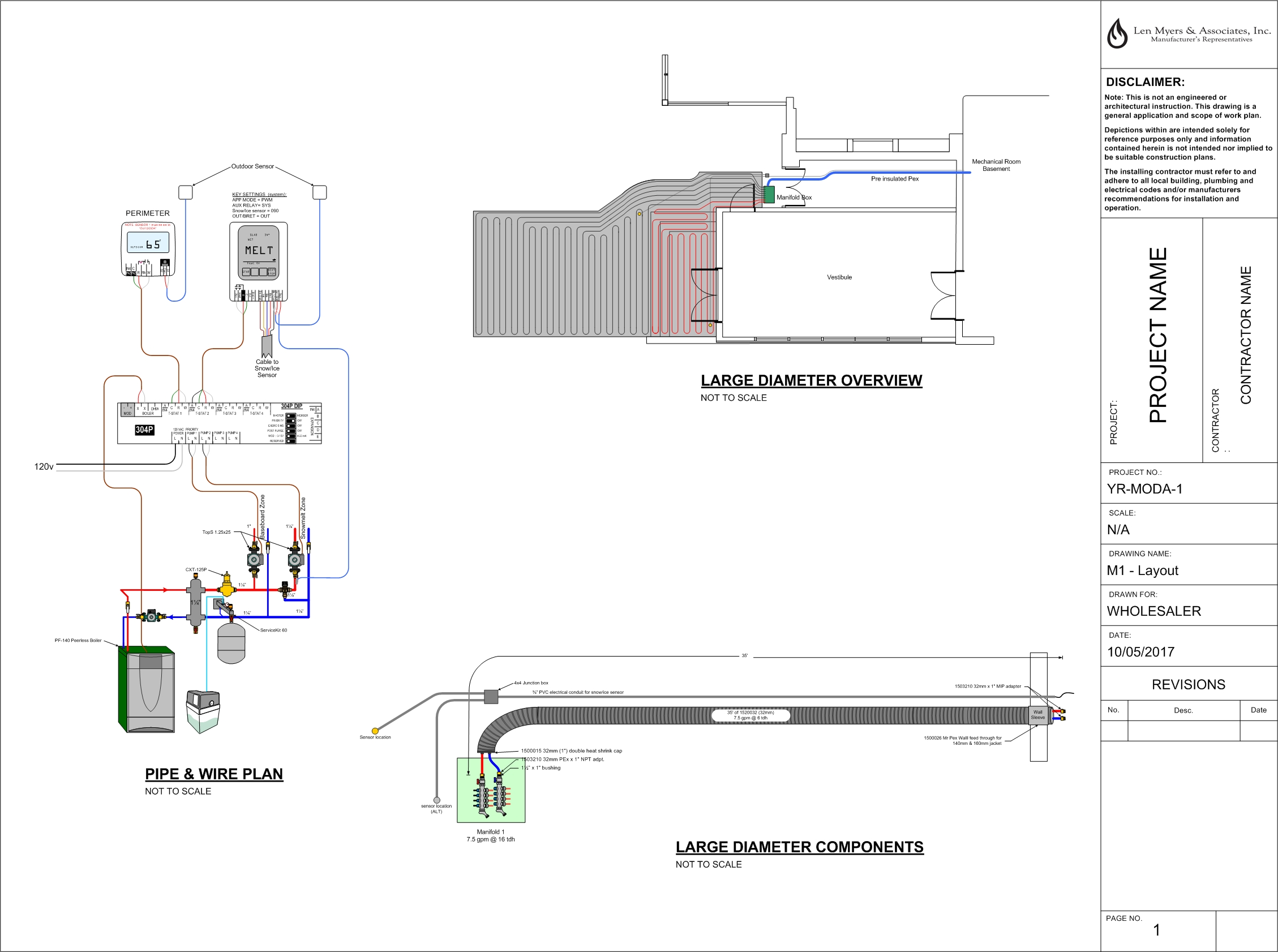

Snow & ice melt project which included baseboard perimeter heat. Here you see snowmelt loops, pre-insulated transfer pipe to a remote manifold & mechanical room piping and control wiring.

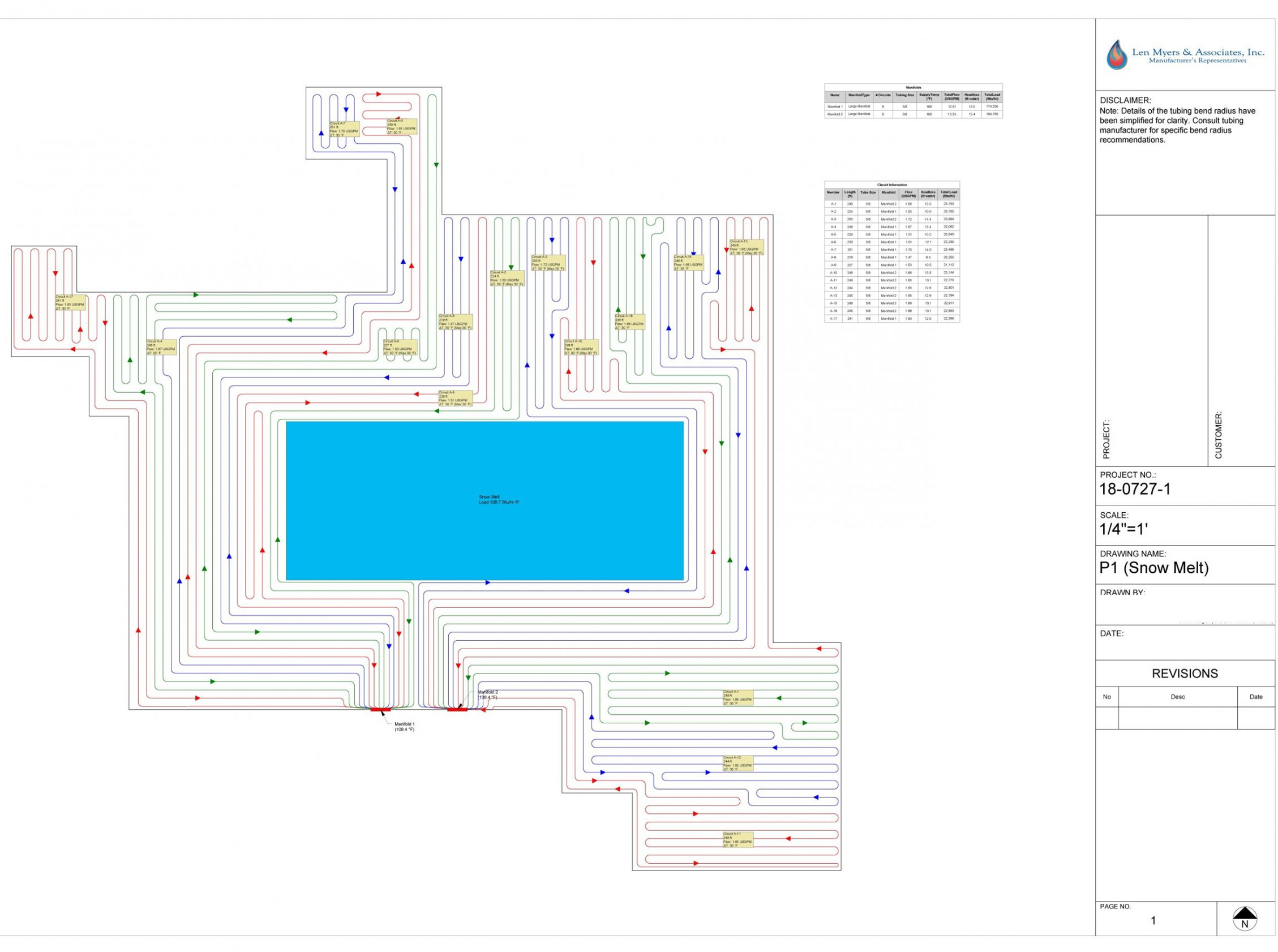

This drawing was for snow and ice melt around an outdoor pool that will be heated for year round use

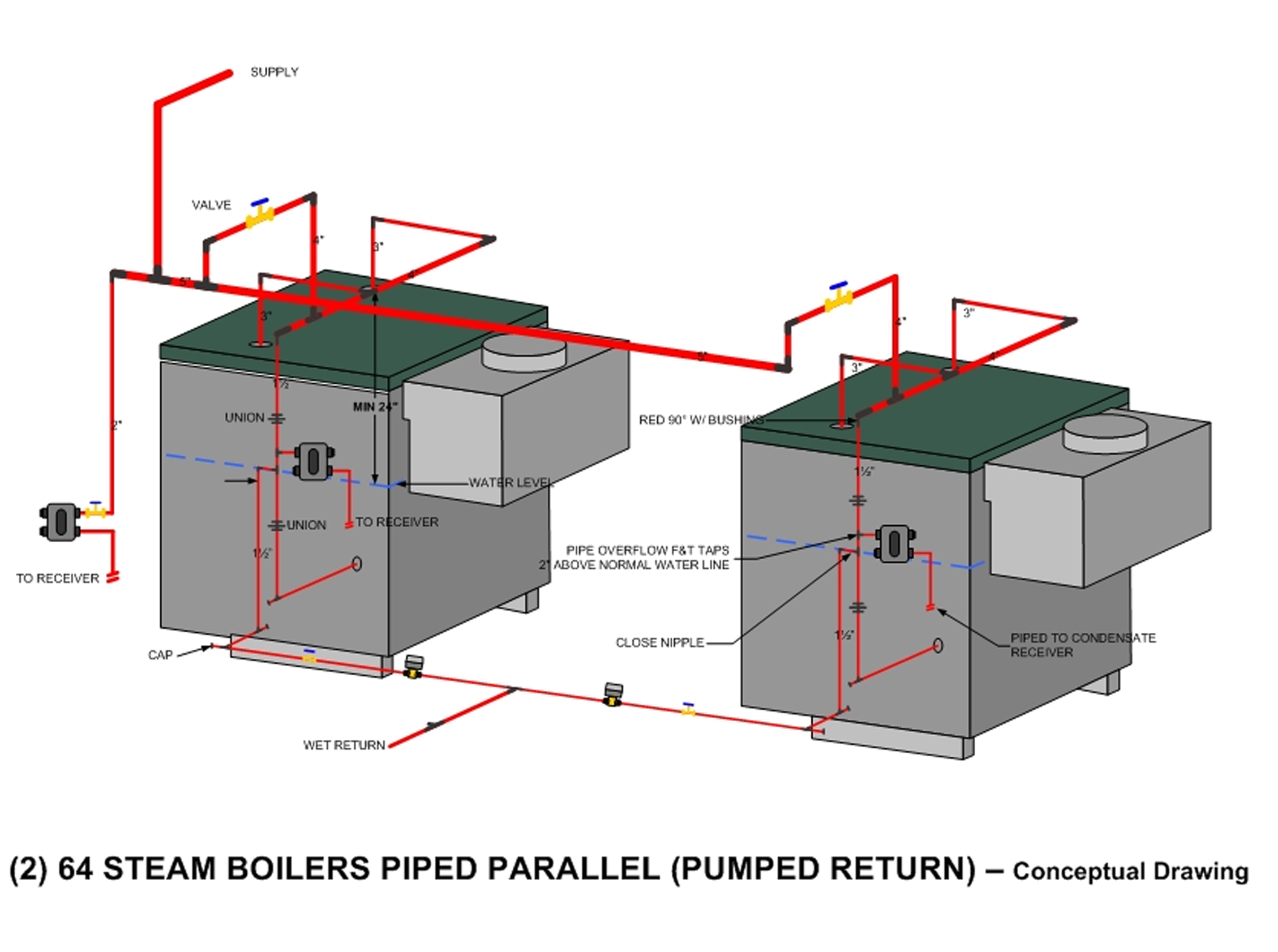

Custom piping for twinning (2) 63 series Peerless steam boilers

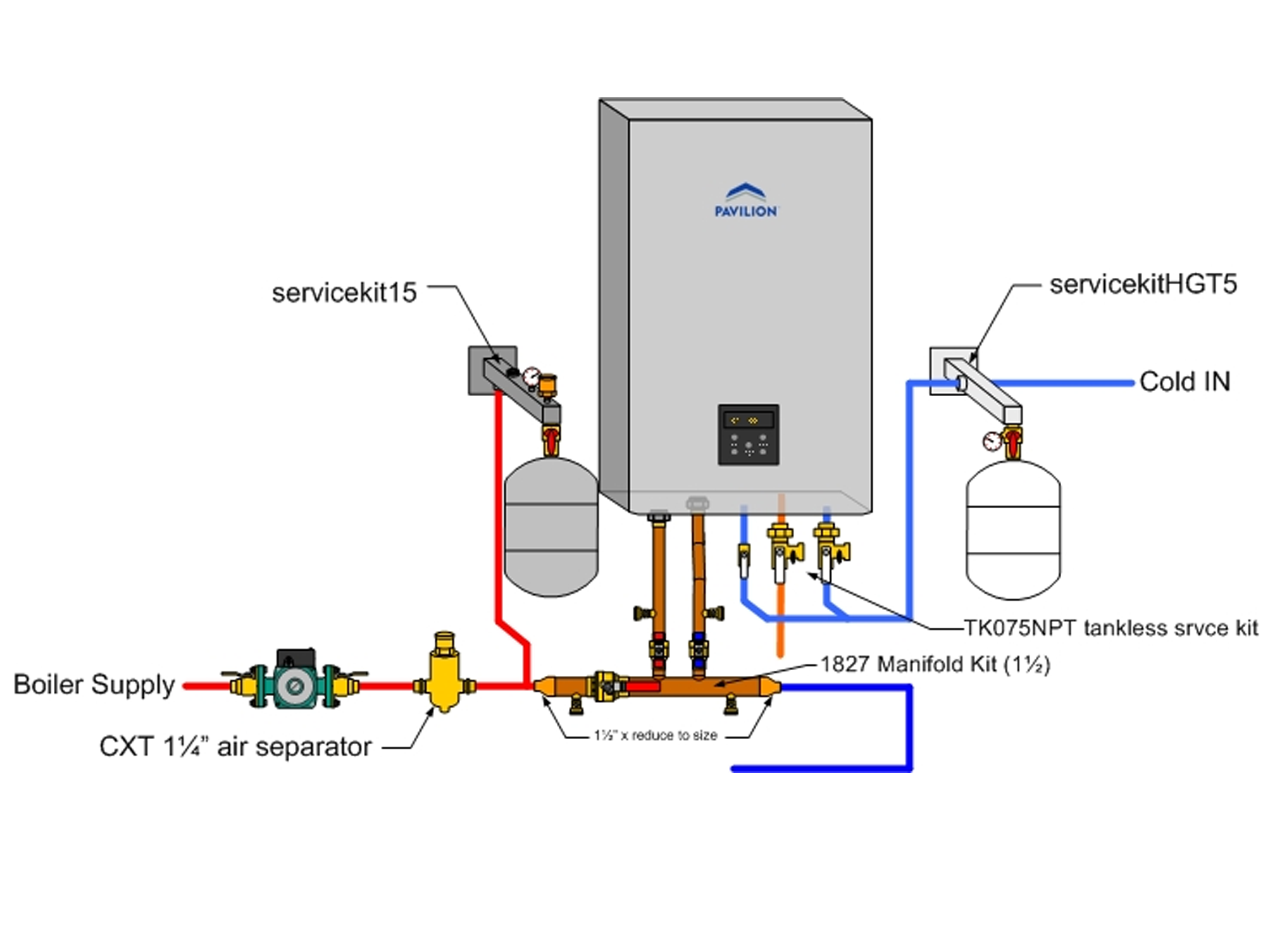

Our typical PV Combi installation using Calefactio plumbing & heating expansion tank kits

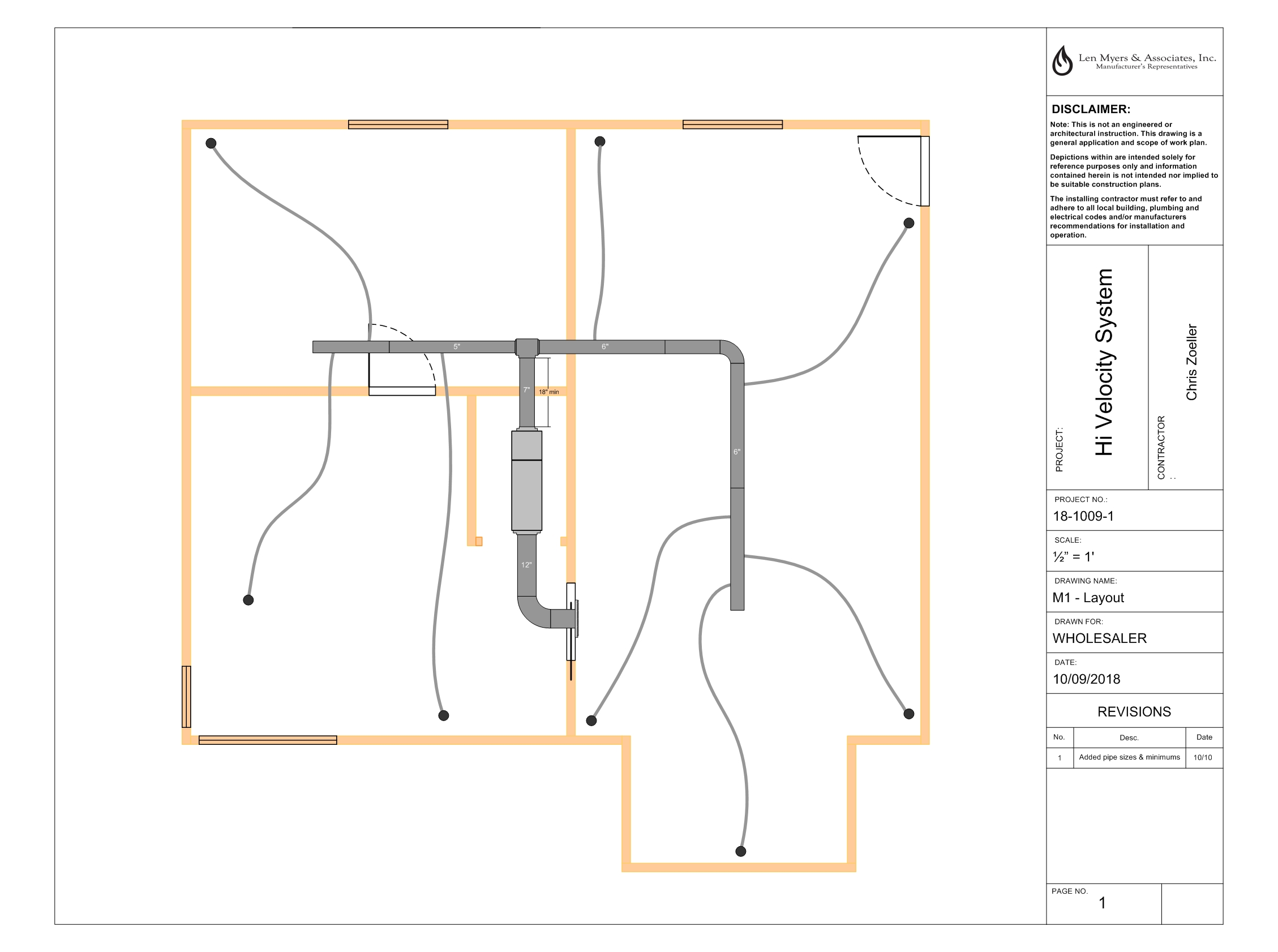

An example of a Hi Velocity Systems main trunk and HE flex duct installation

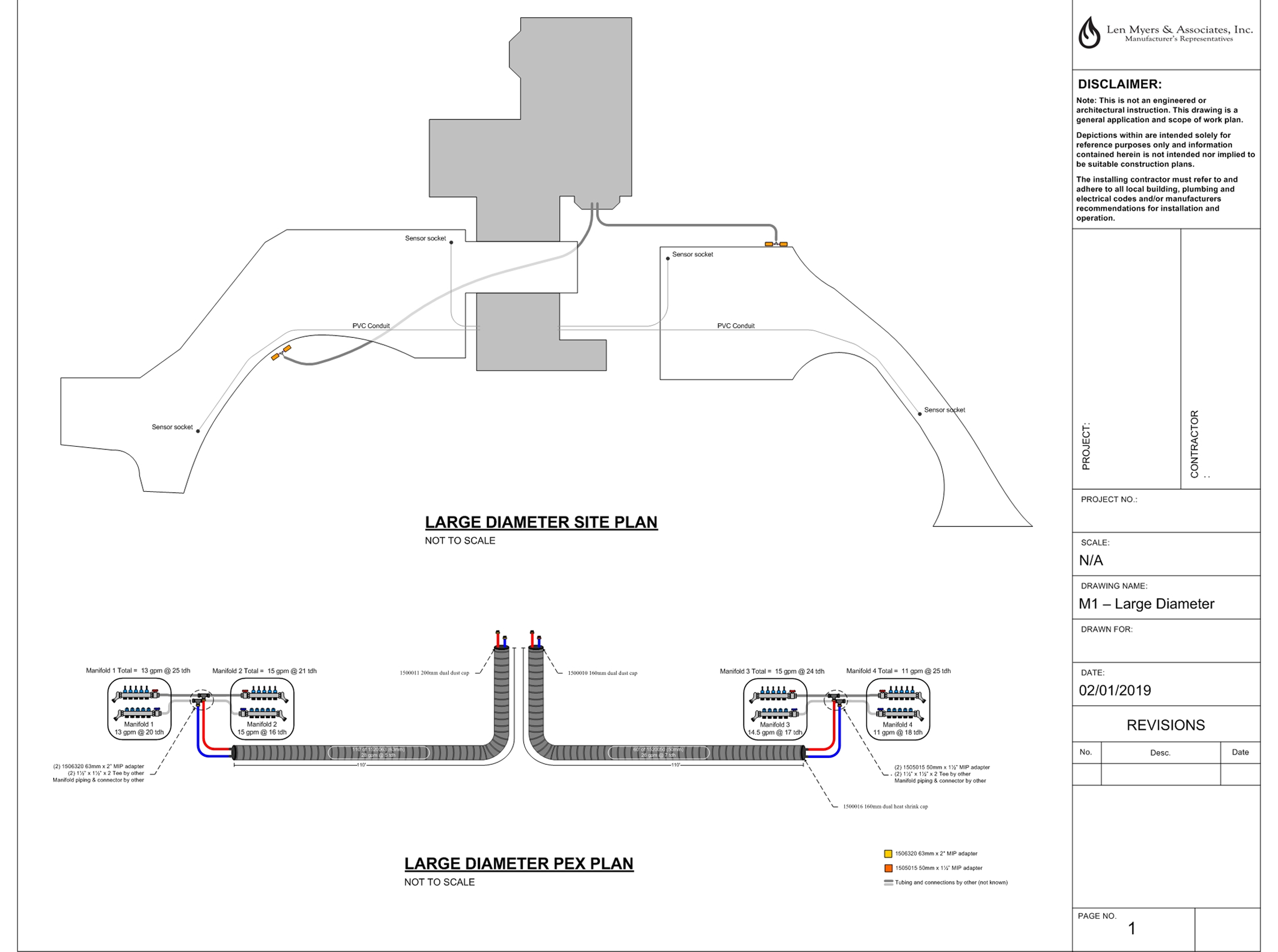

A large diameter pre-insulated piping plan which depicts the piping runs from the mechanical room with manifold connection details. Also depicted are the remote sensor locations and alternate sensor location runs in the event the snow sensor need to be relocated for more accurate on site snow & ice detection.
